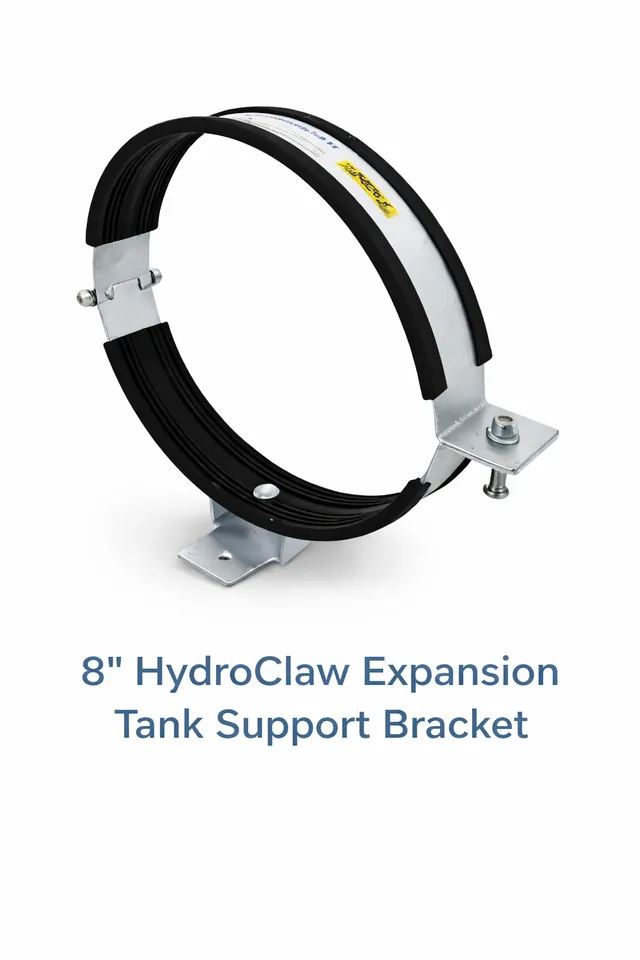

    HydroClaw 8-inch expansion tank bracket - silver finish
    1 / 3

    HydroClaw Expansion Tank Support Bracket

    The safe structural solution for mounting #30 and #60 diaphragm expansion tanks.

    • Holds waterlogged tanks up to 72 lbs
    • Mounts to structure or unistrut
    • Built for contractors
    Request PricingFind a Distributor

    Unsupported Tanks Are a Safety Hazard

    When a tank's bladder fails, it fills with water and becomes dangerously heavy. That dead weight hanging from piping stresses fittings, cracks joints, and can cause catastrophic flooding.

    ~72 lbsWeight of a waterlogged
    #60 expansion tank

    How HydroClaw Works

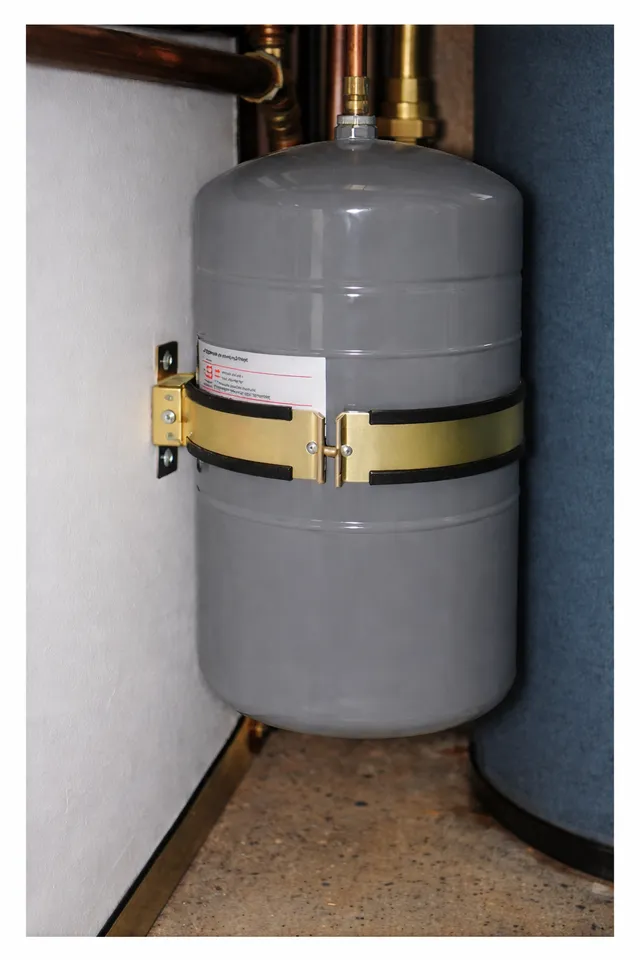

    HydroClaw is a heavy-duty steel clamp and bracket that mounts directly to any structural member or unistrut channel. The tank sits securely in the clamp cradle, transferring all weight to the building structure — not your piping.

    1

    Mount bracket

    Secure to structure or unistrut

    2

    Set the tank

    Place tank in clamp cradle & tighten

    3

    Connect plumbing

    Pipe as normal — you're done

    Tools needed: adjustable wrench or socket set, level, drill, appropriate fasteners

    What's in the Bag

    HydroClaw comes in two halves: one half mounts to the wall or structure, the other clamps the tank in place. The rubber lining inside the clamp reduces friction, keeps the tank from sliding, and prevents metal-on-metal contact. Mounting hardware to attach the tank to the HydroClaw is included.

    Mounting Requirements

    HydroClaw must be anchored to structure — concrete, a wooden wall or framing member, or unistrut channel. If mounting over sheetrock, there must be structure behind it. The bracket accepts 5/16" or 3/8" lag screws or bolts (fasteners selected to suit the substrate).

    Technical Specifications

    MaterialHeavy-duty steel
    Tank Sizes#30 and #60 diaphragm expansion tanks
    Also FitsThermal-type water heater tanks
    MountingStructure or unistrut channel
    Max LoadWaterlogged #60 (~72 lbs)
    Finish8" Silver / 11" Silver
    ApplicationResidential & commercial

    Compatibility

    Compatible with 8" nominal and 11" nominal hydronic, thermal, radiant and solar expansion tanks. Some examples are Amtrol's EX-15, EX-30 and EX-60 hydronic tanks, Amtrol's T-5, ST-5, T-12, and ST-12 thermal tank and many other popular manufacturers tanks. Check the specifications of your favorite tank for sizing.

    FAQ

    What is an expansion tank?
    A safety device in hydronic heating and plumbing systems that absorbs increased water volume as it heats, preventing dangerous pressure buildup.
    Why do tanks become waterlogged?
    The internal bladder can fail over time, allowing the tank to fill with water. A waterlogged #30 weighs ~45 lbs; a #60 reaches ~72 lbs. The internal bladder of a tank is not impervious to the air going through it. It is common for a tank to lose 1 to 2 psi of air pressure per year even though the bladder has not failed. The air pressure in the tank should be checked yearly.
    What sizes does HydroClaw support?
    Standard #30 and #60 diaphragm expansion tanks from virtually all manufacturers, plus thermal-type water heater tanks. HydroClaw Jr. for #15 tanks is coming soon.
    Can it mount to unistrut?
    Yes — HydroClaw mounts to any structural member including unistrut channel.
    What fasteners does HydroClaw use?
    HydroClaw accepts 5/16" or 3/8" lag screws or bolts. It must be anchored to structure — concrete, a wooden wall or framing member, or unistrut. If mounting over sheetrock, there must be structure behind it.
    Does it work with water heater thermal expansion tanks?
    Yes — HydroClaw supports thermal expansion tanks commonly used with domestic hot water heaters.
    Where can I buy HydroClaw?
    HydroClaw is sold exclusively through wholesale supply houses — online at SupplyHouse.com or through authorized regional distributors. See the Find a Distributor page, or contact us and we'll connect you with a supplier in your area.
